24 GHz 17 dBi gain 90 degree beamwidth

EMS Wireless 26V-90-17-1

WR42 Sectoral Horn Antenna

This antenna is designed to cover a frequency range of 18.0–26.5 GHz. It is designed to give around 17 dBi of gain with a 3dB beamwidth of 90 degrees. This makes it ideal for using either as a alternative to a dish for your portable and rover operations or it makes the perfect beacon antenna.

Measuring

8.0 in. length x 6.5 in. width x 1.2 in. depth

20cm. length x 16.5 cm. width x 3 cm. depth

It makes a very good alternative to carrying a dish and delicate 24 GHz feed.

Far more rugged than a folded brass horn. It fits into a backpack without the worry of damaging the feed.

It will not become easily damaged by wildlife when used as a beacon antenna.

The 90 degree beamwidth makes it ideal for you finding other stations in contests or them finding your beacon.

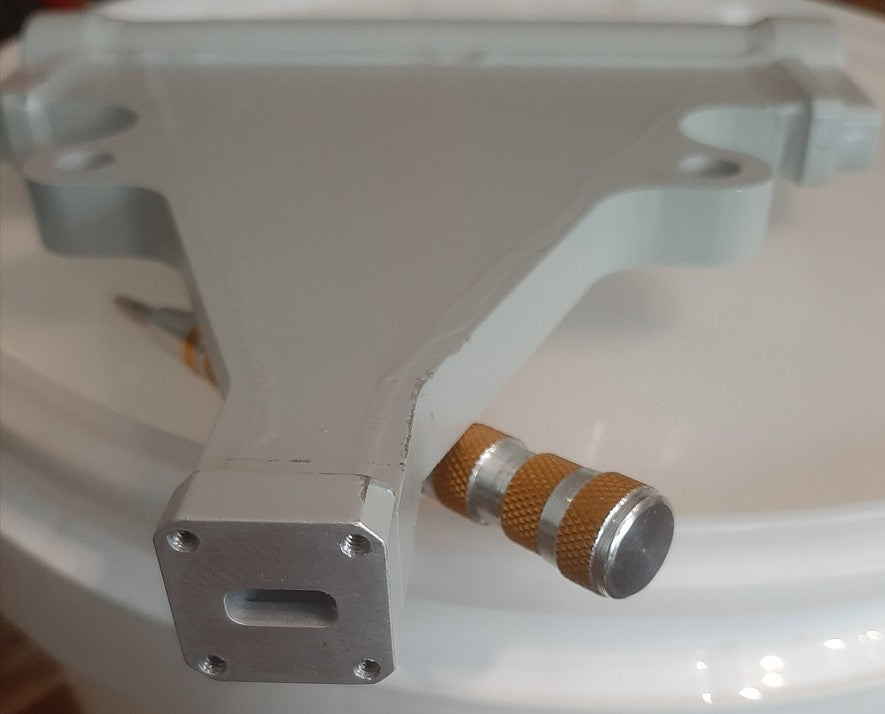

The WR-42 cast fitting makes connecting to your 24 GHz equipment extremely easy.

I am listing these for a uW friend. They will ship from his home in Germany.

$95 UDS

plus shipping from Germany.

Email me at

G6YZC@msn.com

or use the contact me link

for more detail on shipping costs.

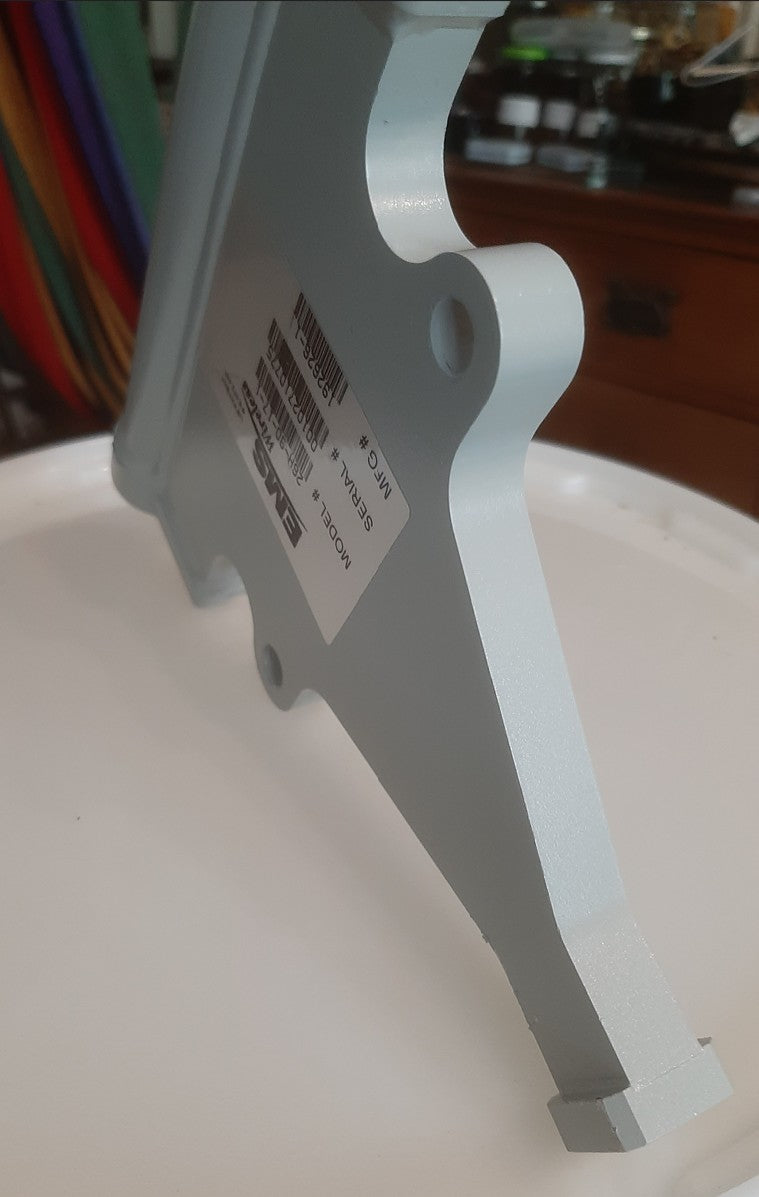

This is the Horizontal version of this antenna.

I also have the Vertical version.
